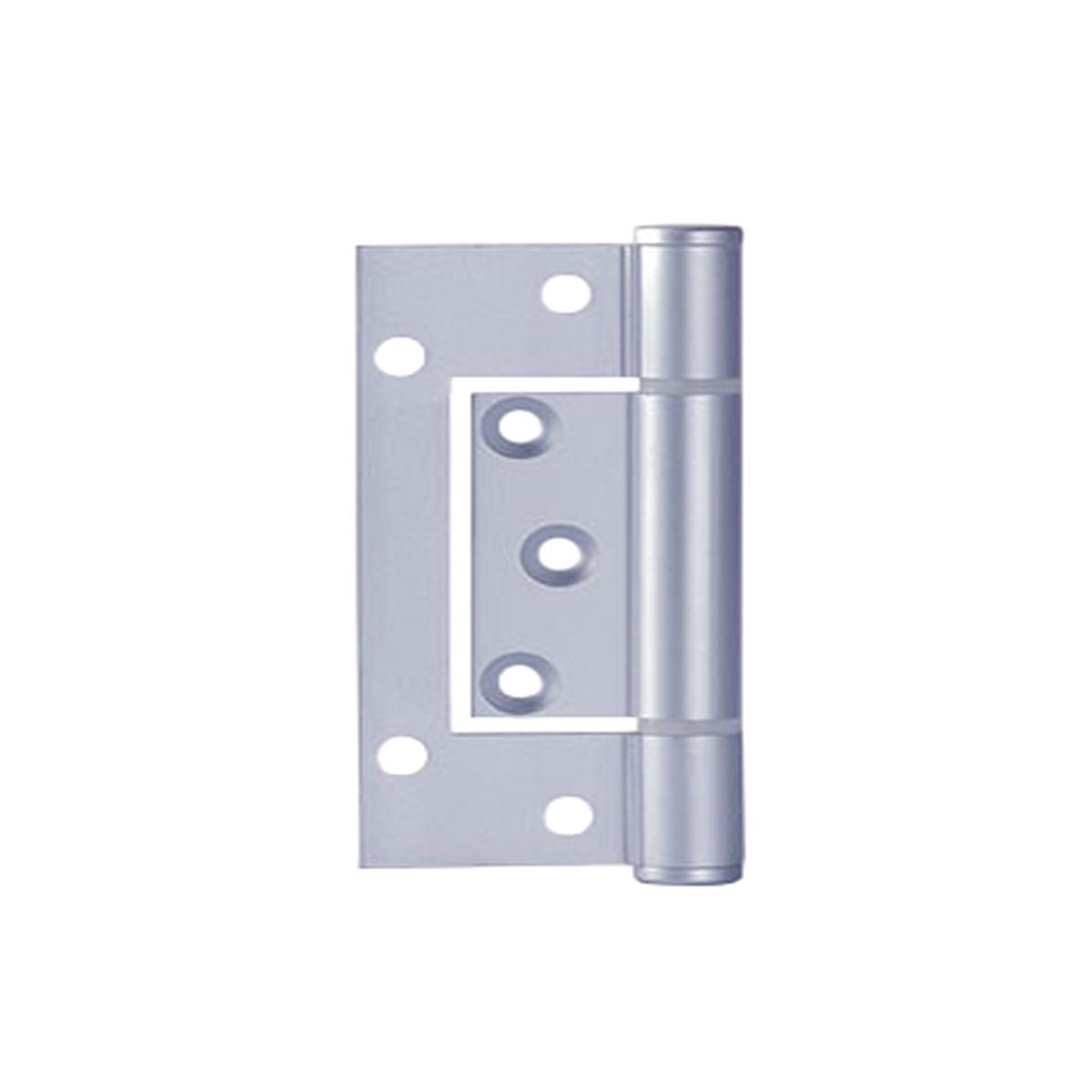

**10 Pack** McCallum Aluminium Centre Knuckle Interfold Hinge A125 A105SF

10 Pack McCallum Aluminium Centre Knuckle Interfold Hinge A105SFA125 10 x Hinge w/ screws Application: Aluminium doors in high usage situations Suitable for either centre pocket or front edge glazing systems. Suitable for some timber door applications Pre-drilling of the holes in the timber may be required. Possible use – bi-fold doors Specification: Alloy: High strength T.6 minimum tensile 254 mpa. Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends Bushes: Flanged nylon. Knuckle: Round Aluminum Endcaps: Pressed-in interference fit Maximum Weight Capacity: 20kg Dimensions: 100mm x 34mm Installation Guide Only: Door Thickness: Minimum 35mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required. Standard Door: 2040 (Height) x 820 (Width) Locator allows for fast fixing. Fixing: Fastening Screws supplied Pop rivets are not recommended. Finish: SNA – Satin Natural Anodised Black – Black Powder Coat White – White Powder Coat
