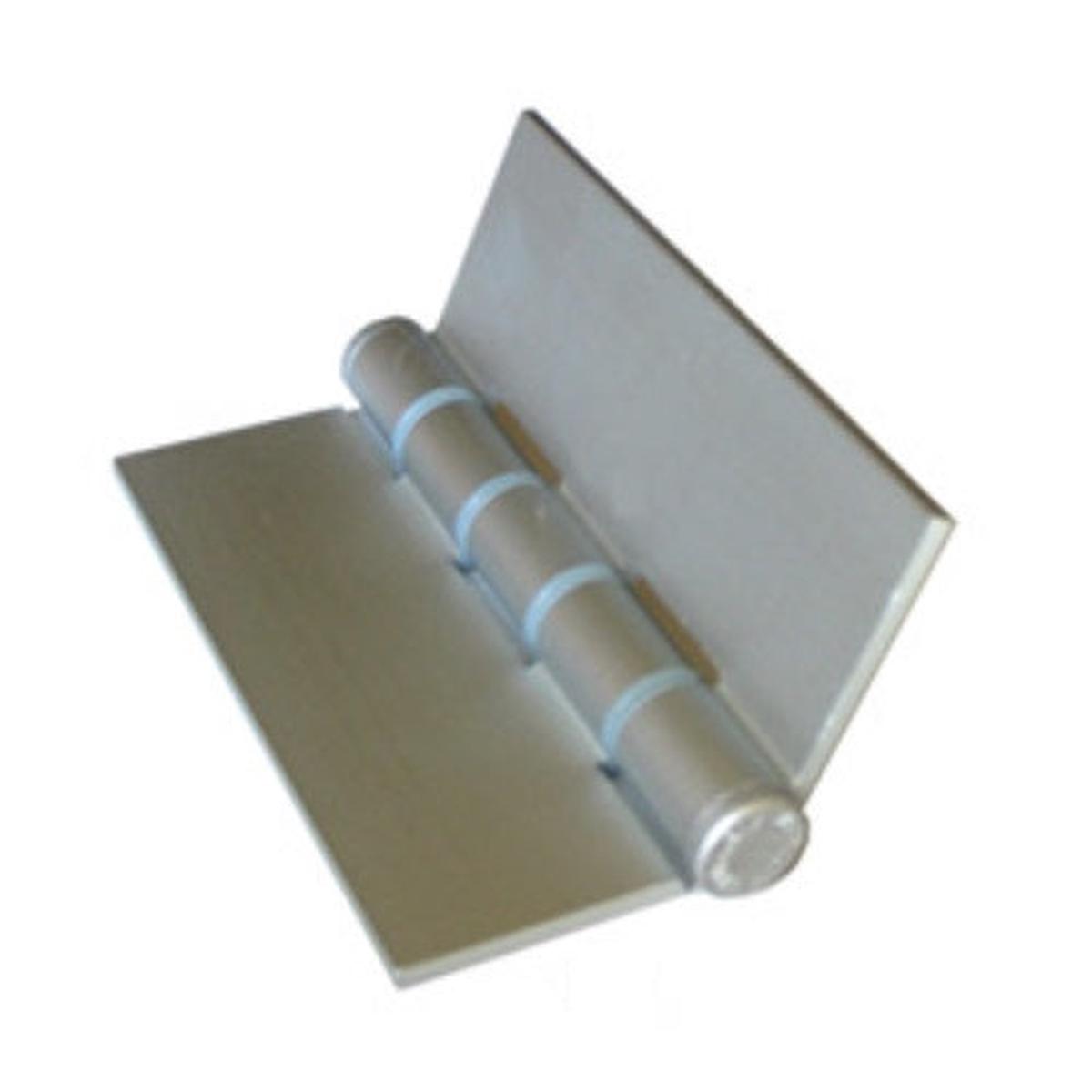

**10 Pack** McCallum Aluminium Concealed Fix Hinge Satin A142 AB45

10 Pack McCallum Aluminium Concealed Fix Hinge Satin AB45A142 10 x Butt Hinge Application: Aluminium doors in medium usage situations Specifications: Alloy: High strength T.6 minimum tensile 254 mpa Pin Dia: 4.7mm stainless steel with machined chamfer both ends Bushes: Flanged nylon Knuckle: Round Aluminium Endcaps: Pressed-in interference fit Size: 100mm Installation Guide Only: Door thickness : Minimum 35mm. When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage a fourth hinge may be required Standard Door : 2040 high x 820 wide x 20 kg 3 hinges. Fixing: Fastening screws not supplied. Concealed fix. Pop rivets are not recommended. Finish: SNA – Satin Natural Anodised
