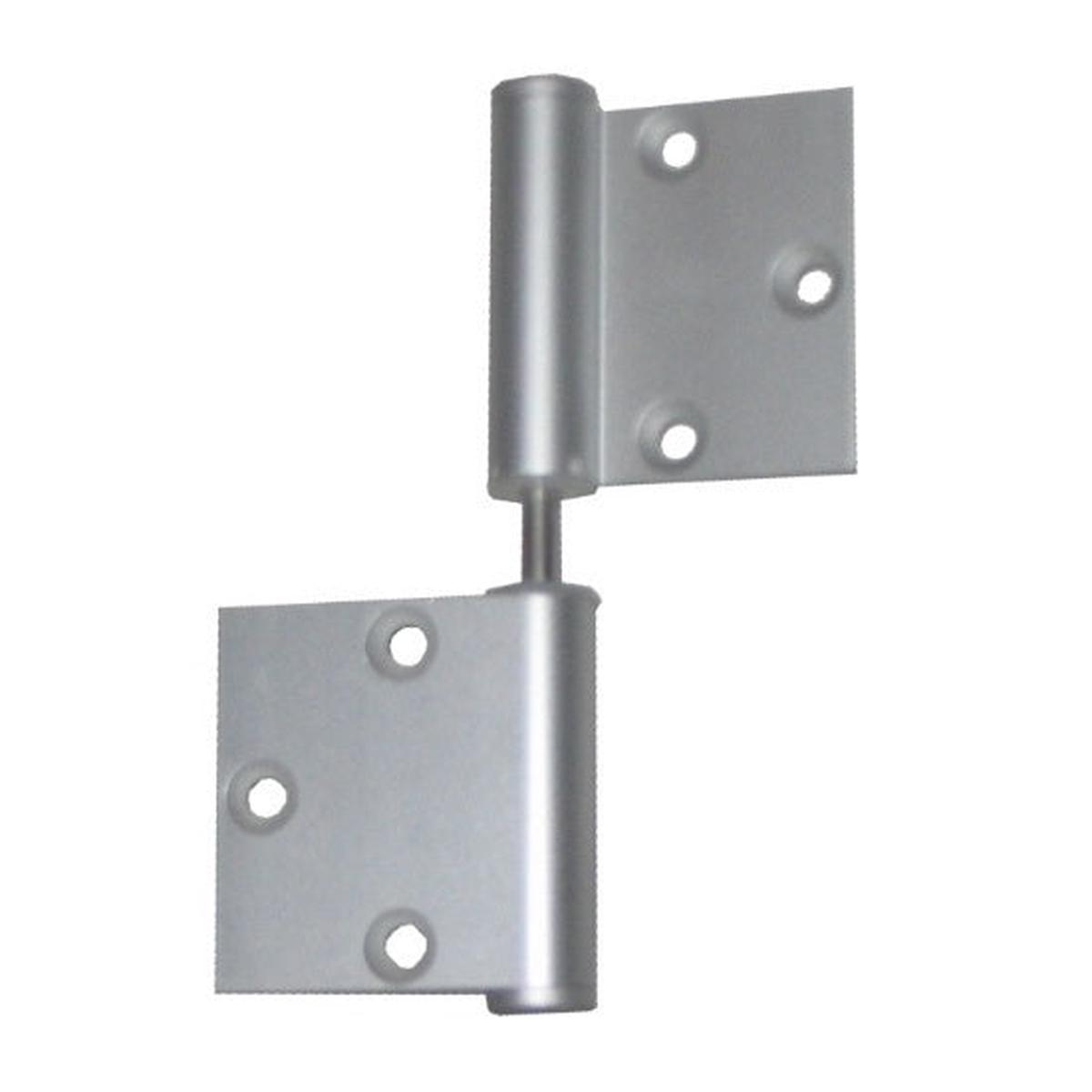

**10 Pack** McCallum Aluminium Lift Off Hinge Right Hand Satin A102 A102RHF

McCallum Aluminium Lift Off Right Hand HingeA102 10 x Hinge w/ screws Application: Lift-off facility for aluminium and timber doors. Specifications: Alloy: High strength T.6 minimum tensile 254 mpa Pin Dia: 4.7mm stainless steel with machined chamfer both ends Bushes: Flanged nylon Knuckle: Round Aluminium Endcaps: Pressed-in interference fit Pressed in lower endcap with sliding fit for pin Pin Length: 25mm Installation Guide Only: HANDING IS DETERMINED AS BELOW RIGHT HAND is with the door coming toward you, and the hinges are on the right LEFT HAND is with the door coming toward you, and the hinges are on the Left Door thickness : Minimum 35mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage a fourth hinge may be required Standard Door : 2040 high x 820 wide X 25 kg 3 hinges For lift-off clearance, we recommend a 40mm gap, minimum at the top of the door Fixing Fastening screws supplied Pop rivets are not recommended
