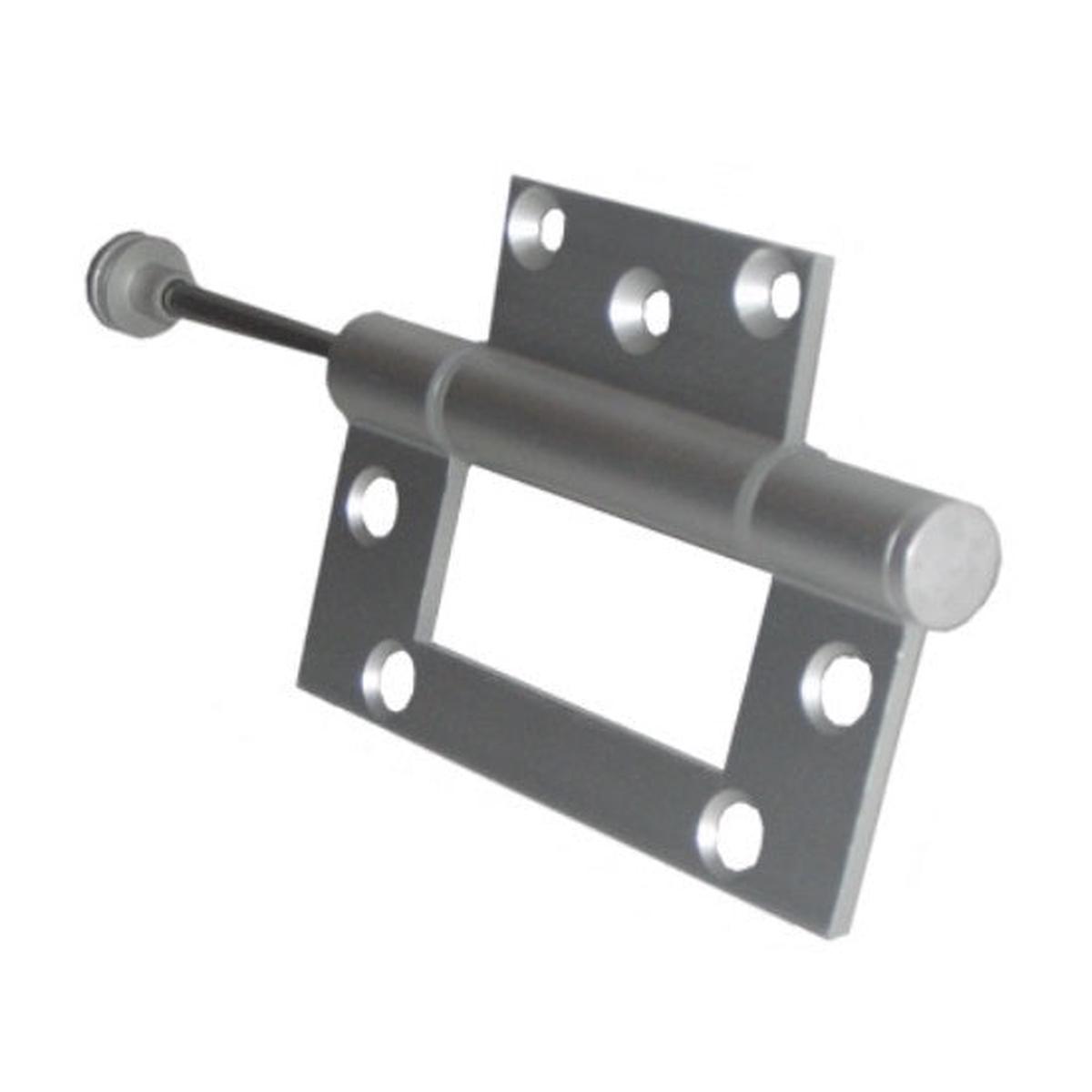

**10 Pack** McCallum Aluminium Loose Pin Lift Off Hinge Satin A173 A74LB

10 Pack McCallum Aluminium Loose Pin Lift Off Fast-Fix HingeA173 10 x Hinge Application: Suitable for aluminium doors in medium usage situations Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required Lift-off facility Specifications: Alloy: High strength T.6 minimum tensile 254 mpa Pin Dia: 4.7mm stainless steel with machined chamfer both ends Bushes: Flanged nylon Knuckle: Round Aluminium Endcaps: Pressed-in interference fit Pressed in lower endcap with sliding fit for pin Top endcap has finger groove for easy removal of pin for the lift-off Size: 100mm Installation Guide Only: Door Thickness : Minimum 35mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage a fourth hinge may be required Standard Door : 2040 high x 820 wide x 16 kgs 3 hinges. Please consider using A104F, A104WF, A105F or A107RLF Locator allows for fast fixing The large leaf should be attached to the door Ensure that the lift-off endcap is located to the top Fixing: Fastening screws not supplied One directional Pop rivets are not recommended
