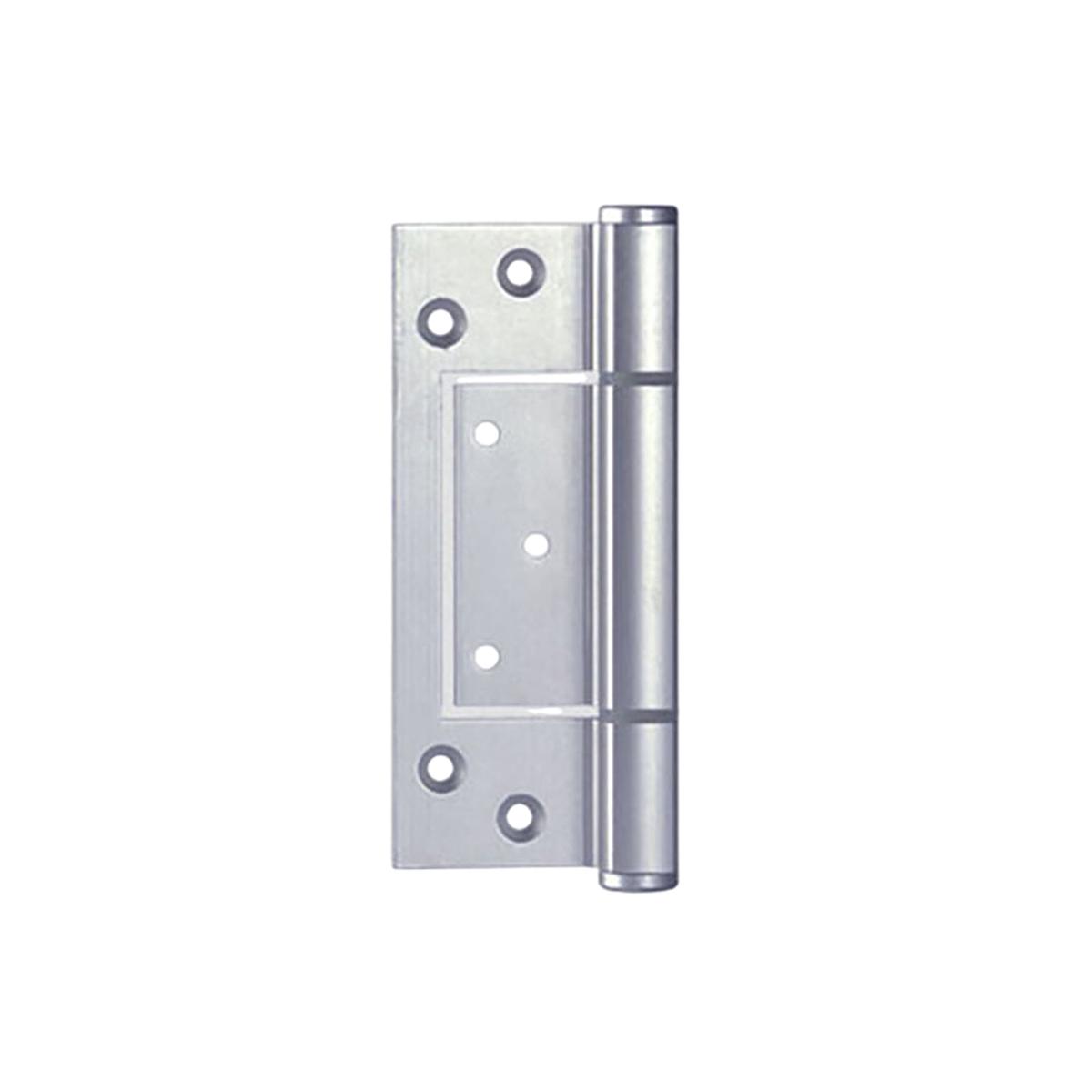

**10 Pack** McCallum Aluminium Offset Interfold Hinge A107 A107RLF

10 Pack McCallum Aluminium Offset Interfold Hinge A107RLFA107 Application: Aluminium doors in high usage situations Suitable for some timber door applications Offset knuckle Specification: Alloy: High strength T.6 minimum tensile 254 mpa. Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends Bushes: Squareline – Heavy Duty Knuckle: Round Aluminum Endcaps: Pressed-in interference fit Maximum Weight Capacity: 80kg Dimensions: 130mm x 39mm Installation Guide Only: Door Thickness: Minimum 40mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required. Standard Door: 2040 (Height) x 820 (Width) Locator allows for fast fixing Fixing: Fastening Screws supplied Pop rivets are not recommended. Finish: SNA – Satin Natural Anodised Black – Black Powder Coat White – White Powder Coat
