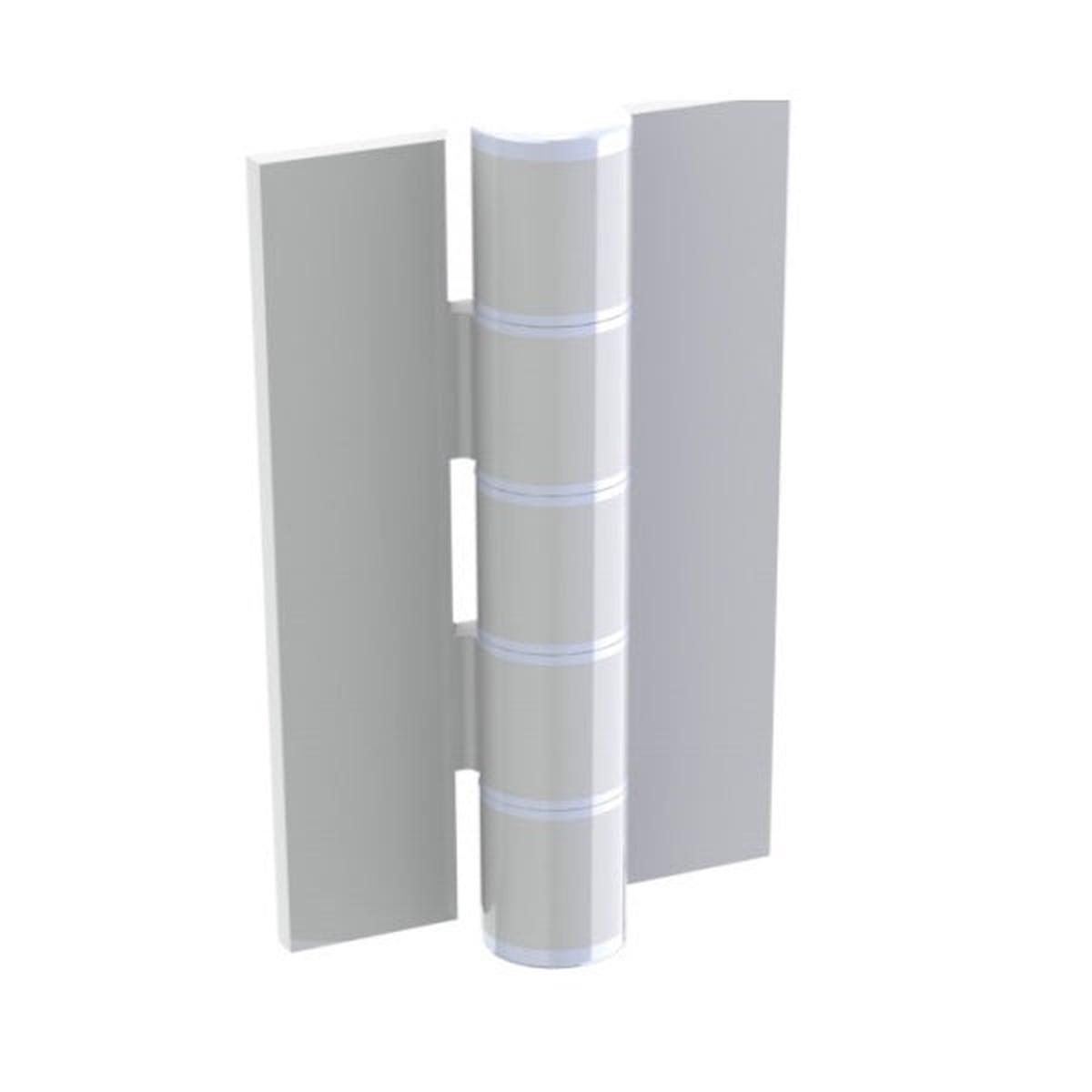

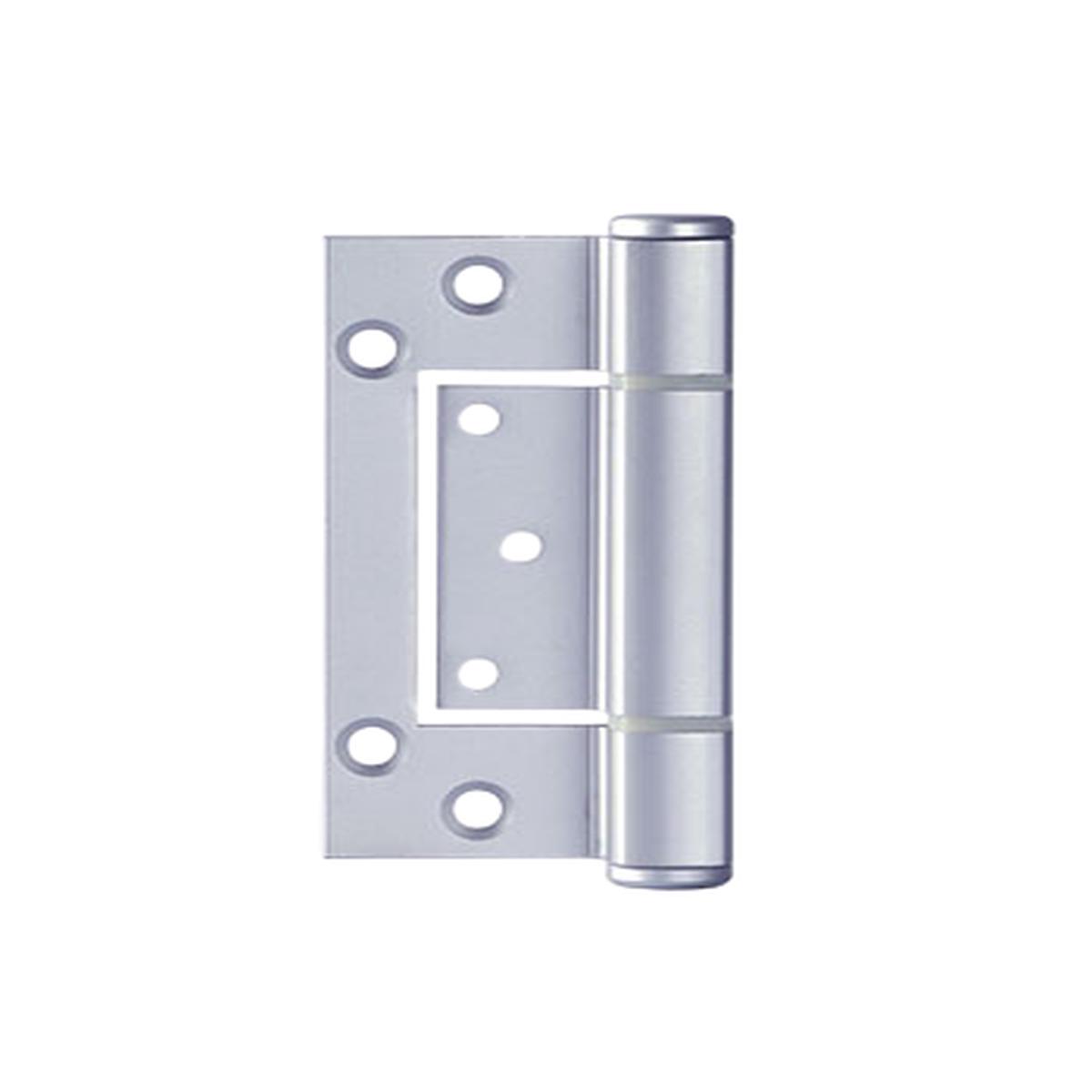

**10 Pack** McCallum Aluminium Offset Interfold Hinge A117 A107RF

10 Pack McCallum Aluminium Offset Interfold Hinge A107RFA117 10 x Hinge w/ screws Application: Suitable for aluminium doors in high usage situations. Suitable for some timber door applications. Offset Knuckle Specification: Alloy: High strength T.6 minimum tensile 254 mpa. Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends Bushes: Flanged nylon. Knuckle: Squareline – Heavy Duty Aluminum Endcaps: Pressed-in interference fit Maximum Weight Capacity: 50kg FOR HEAVIER DOORS, SEE THE LARGER VERSION, A107. IT IS 130MM LONG AND HAS A WEIGHT CAPACITY OF 80KG. Dimensions: 110mm x 34mm Installation Guide Only: Door Thickness: Minimum 34mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required. Standard Door: 2040 (Height) x 820 (Width) Locator allows for fast fixing Fixing: Fastening Screws supplied Pop rivets are not recommended. Finish: SNA – Satin Natural Anodised Black – Black Powder Coat White – White Powder Coat
