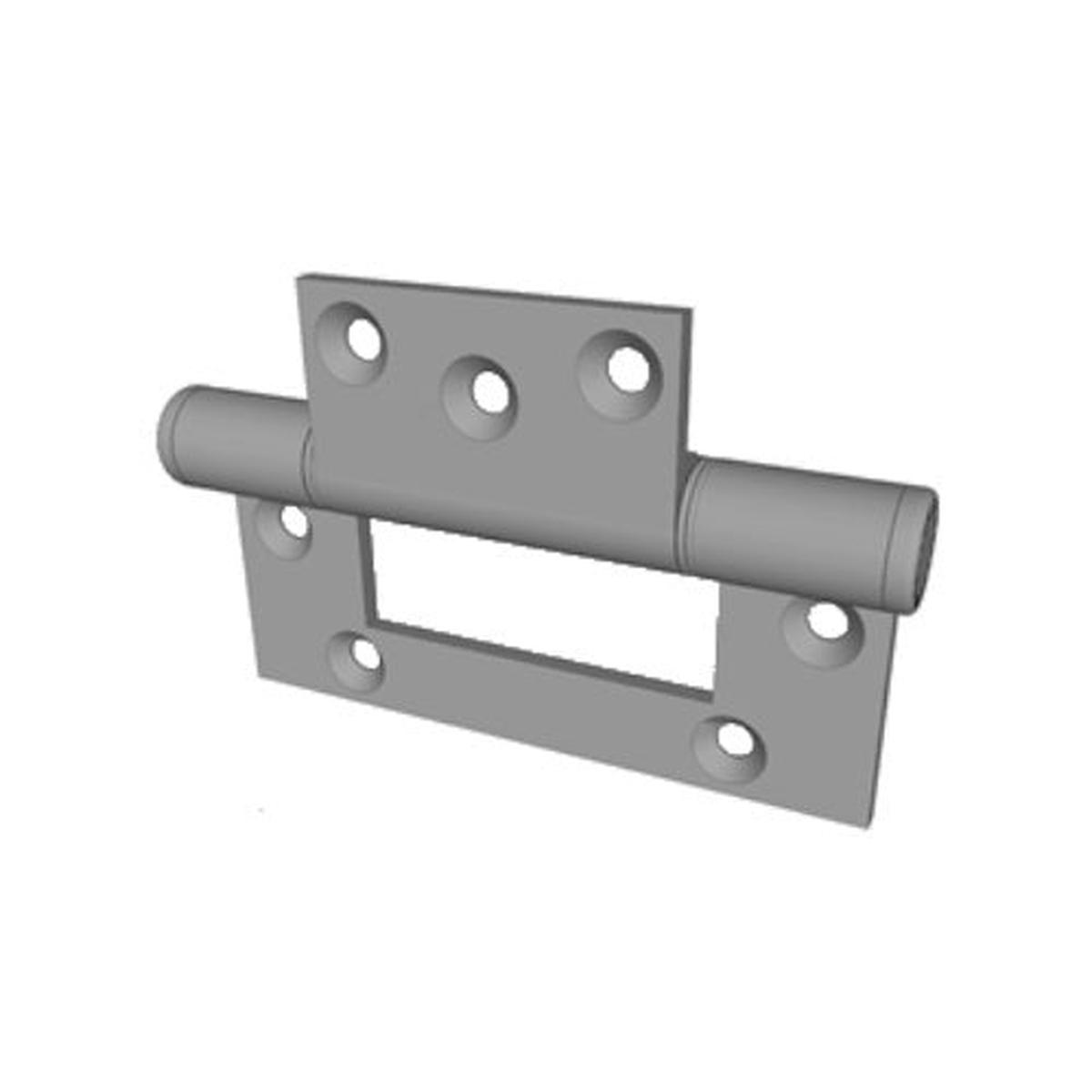

**10 Pack** McCallum Aluminium Offset Interfold Hinge Satin A165 A67RF

10 Pack McCallum Aluminium Offset Interfold Hinge Satin Natural Anodised A67RFA165 10 x Hinge Application: Aluminium doors in medium usage situations Specification: Alloy: High strength T.6 minimum tensile 254 mpa. Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends Bushes: Flanged nylon Knuckle: Round Aluminum Endcaps: Pressed-in interference fit Maximum Weight Capacity: 20kg Size: 100mm Installation Guide Only: Door Thickness: Minimum 32mm When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required. Standard Door: 2040 (Height) x 820 (Width) Locator allows for fast fixing Fixing: Fastening Screws supplied Pop rivets are not recommended. Finish: SNA – Satin Natural Anodised
